Heating Method
Radiant, hot-air circulation or combined heating is reviewed for the approved cure schedule.
JI HENG TECHNOLOGY
Industrial Ovens & Curing Systems
Electric ovens, curing ovens and tunnel drying systems documented in the company brochure.
Custom DesignAutomated / ManualProject-Specific EnergyTurnkey Project
Request a Custom Solution
From Our Product Catalog
Documented equipment and process scope
The brochure presents electric ovens, curing ovens and drying equipment. It describes radiant heating, hot-air circulation and combined concepts, along with straight-through and bridge-type oven arrangements.
Temperature uniformity, residence time and energy use require project calculations and an agreed coating cure schedule.
Equipment shown or described
- ✓Electric ovens
- ✓Curing ovens
- ✓Drying rooms
- ✓Tunnel ovens
- ✓Radiant and hot-air circulation concepts
Source: JI HENG TECHNOLOGY product catalog, PDF pages 9, 11.
View English product overview (PDF) →Core Subsystems
Inside the complete system
These are the engineering modules to review for this type of system. Final configuration follows the approved project scope.
Oven Arrangement
Single-chamber, straight-through or bridge-type concepts are considered against plant flow.
Air Circulation
Air movement and temperature uniformity are evaluated for the workpiece and finish.
Insulation & Enclosure
Sealing, insulation and access are specified for the installation.
Conveyor Interface
The oven is coordinated with the selected handling method and dwell time.
Controls & Safety
Heating controls, interlocks and acceptance criteria follow the project technical agreement.
Project-Specific Parameters
Configured by technical agreement
These are design inputs, not a fixed model specification. No standard dimensions, capacities or performance figures are asserted without a confirmed project drawing and calculation.
| Maximum workpiece size | Designed to the approved workpiece envelope and handling method |
|---|---|
| Production capacity | Calculated from takt time, shifts, loading and process dwell time |
| Coating and curing process | Selected for the substrate, coating material and finish specification |
| Conveying method | Overhead, floor, accumulation, indexed or custom handling |
| Energy and controls | Agreed for available site utilities and the required control platform |
| Environmental system | Selected from coating material, exhaust condition and local requirements |
The customer and engineering team confirm the destination country, installation site, applicable laws and standards, technical parameters and acceptance criteria in the signed project documents. Custom design does not by itself establish certification or legal compliance.
Applicable Workpieces
Designed around the product
Discuss the workpiece, substrate and finish with our team. These application areas are planning examples; the gallery photos may show other configurations.
Powder-coated metal parts
Industrial components
Coating production lines
Custom workpieces

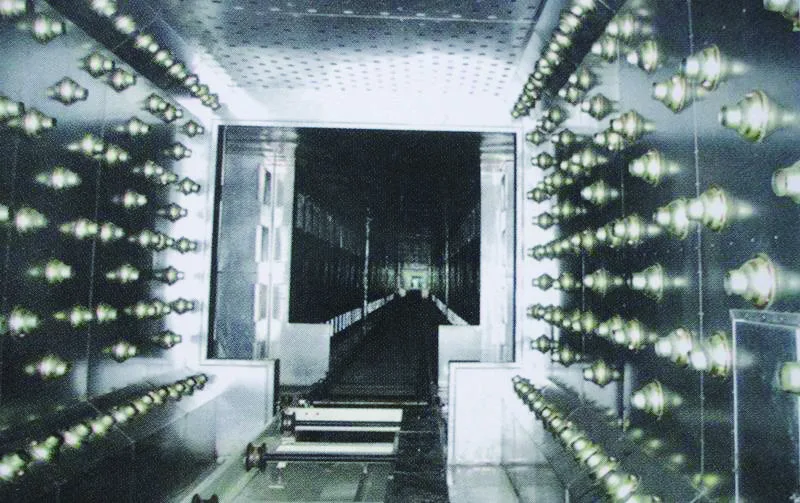

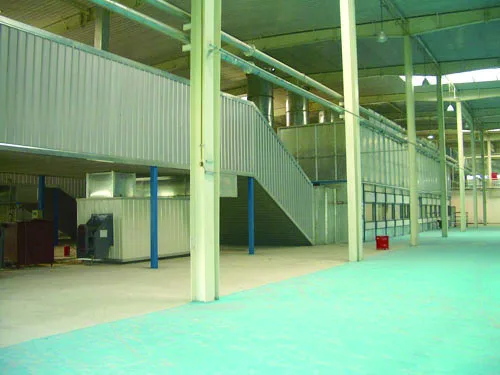

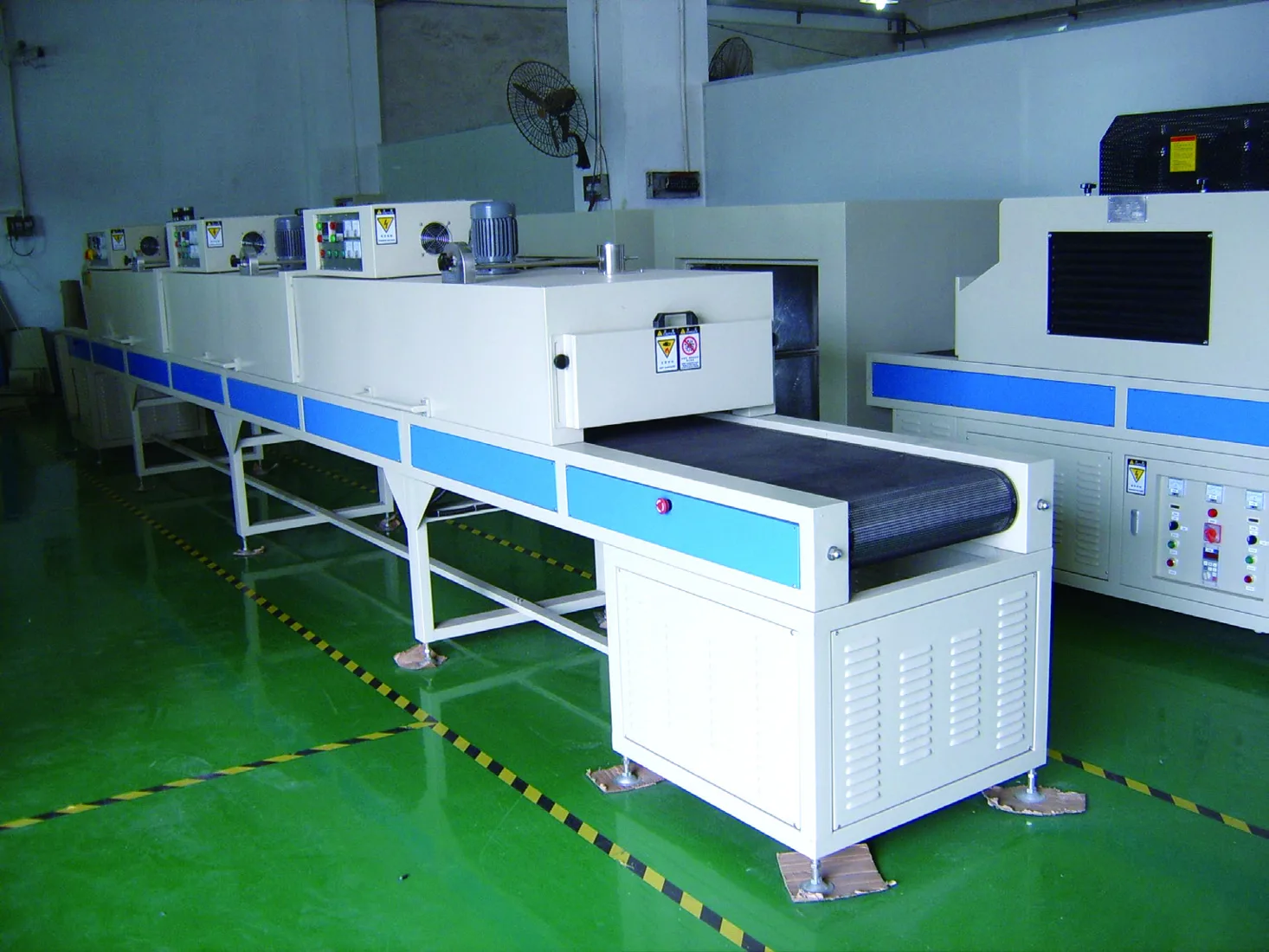

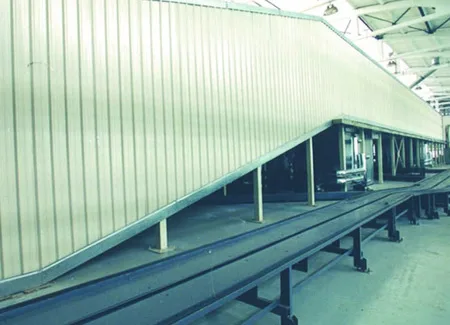

Product Gallery
More views of this equipment series
Selected photos from the supplied product image library. These views may represent different projects and configurations.
Related Equipment References
See more documented views before requesting a design
These classified equipment photographs come from the supplied image library. Customer identity, installation date and process settings are not yet verified as case-study data.
Technical Evaluation
Request Engineering ScopeBring your requirements to our engineering team
Request a project-specific layout and engineering scope for internal evaluation.
Planning industrial ovens & curing systems?
Send us your workpiece or process details, production target and factory layout for an application-specific proposal.
