Part Loading & Fixtures
Fixtures and loading methods developed around bumpers, bus parts and automotive subassemblies.
JI HENG TECHNOLOGY
Automotive Parts Coating Lines
Purpose-built coating systems for bumpers, bus components and other automotive parts.
Custom DesignAutomated / ManualProject-Specific EnergyTurnkey Project
Request a Custom Solution
From Our Product Catalog
Documented equipment and process scope
The catalog identifies automotive applications and illustrates bus-related coating, material handling and integrated assembly environments. Automotive part fixtures, cycle time and coating steps require project-specific design.
The catalog shows application areas; it does not provide a complete specification for every automotive component type.
Equipment shown or described

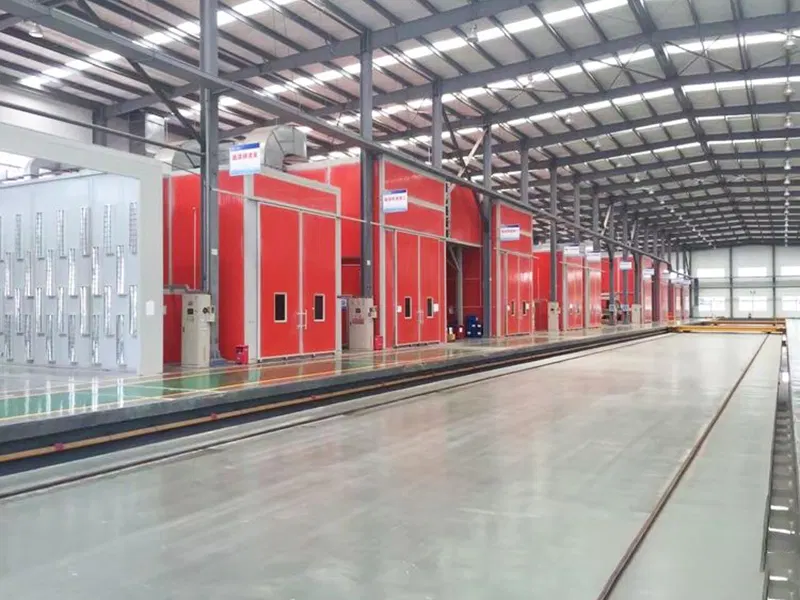

- ✓Painting rooms

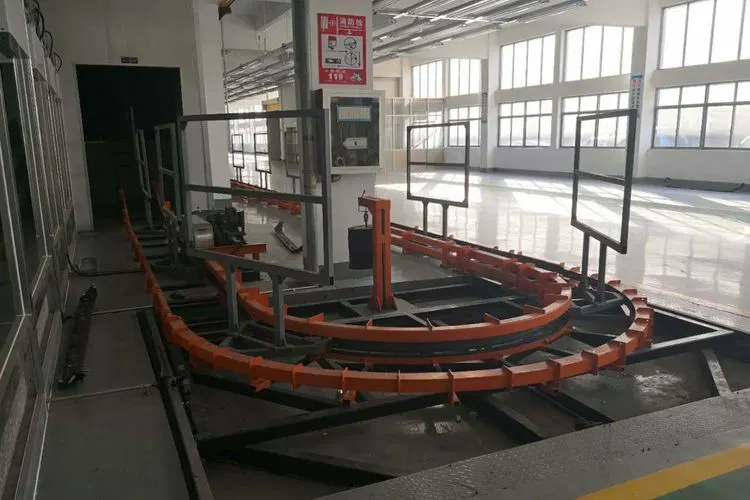

- ✓Mechanized conveying
- ✓Lifting and logistics equipment
- ✓Automation control
- ✓Integrated line interfaces
Source: JI HENG TECHNOLOGY product catalog, PDF pages 4, 8, 10, 13, 17.
View English product overview (PDF) →Core Subsystems
Inside the complete system
These are the engineering modules to review for this type of system. Final configuration follows the approved project scope.
Pretreatment
Cleaning and preparation stages configured for substrate and corrosion requirements.
Automated Application

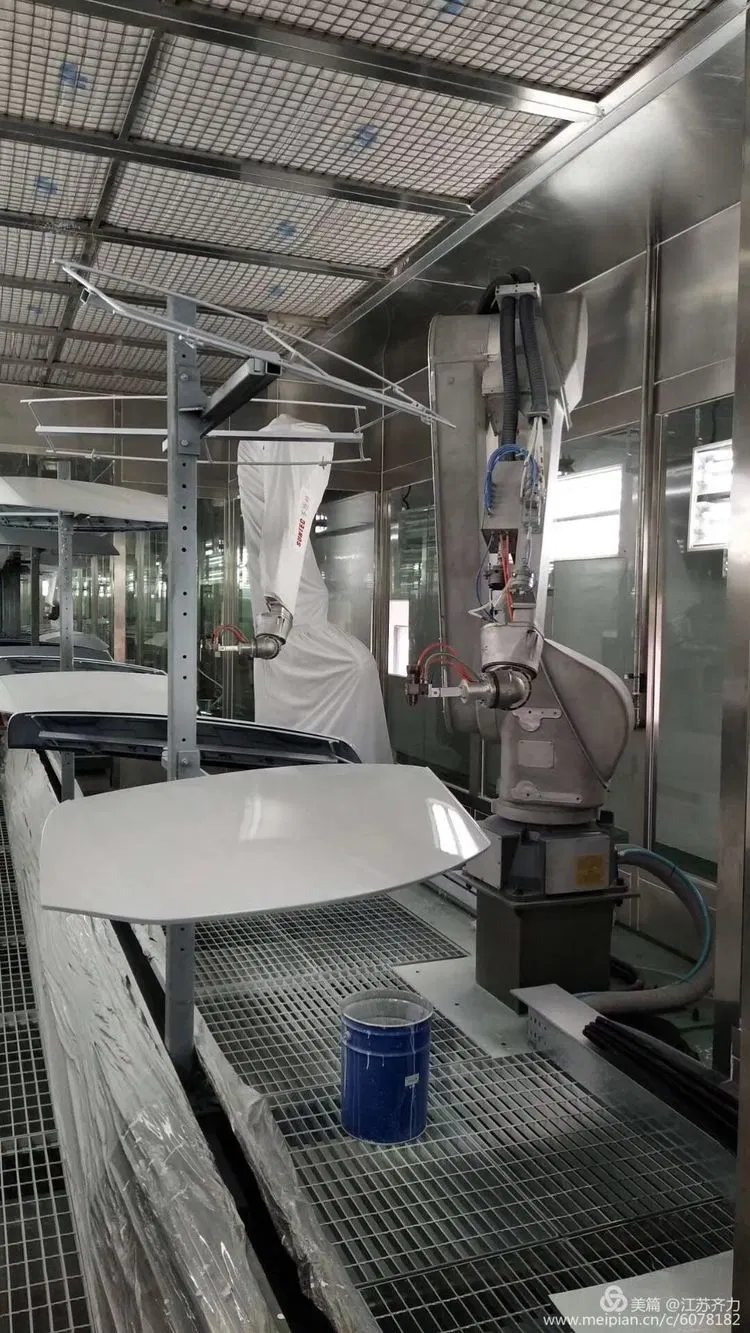

Robot or reciprocator-based application for repeatable coverage and finish control.
Flash-Off & Curing
Process stages matched to the approved liquid or powder coating system.
Conveying & Buffering
Material flow, buffers and line interfaces aligned with the production takt.
Inspection Integration
Inspection, rain-test or downstream interfaces can be integrated where required.
Project-Specific Parameters
Configured by technical agreement
These are design inputs, not a fixed model specification. No standard dimensions, capacities or performance figures are asserted without a confirmed project drawing and calculation.
| Maximum workpiece size | Designed to the approved workpiece envelope and handling method |
|---|---|
| Production capacity | Calculated from takt time, shifts, loading and process dwell time |
| Coating and curing process | Selected for the substrate, coating material and finish specification |
| Conveying method | Overhead, floor, accumulation, indexed or custom handling |
| Energy and controls | Agreed for available site utilities and the required control platform |
| Environmental system | Selected from coating material, exhaust condition and local requirements |
The customer and engineering team confirm the destination country, installation site, applicable laws and standards, technical parameters and acceptance criteria in the signed project documents. Custom design does not by itself establish certification or legal compliance.
Applicable Workpieces
Designed around the product
Discuss the workpiece, substrate and finish with our team. These application areas are planning examples; the gallery photos may show other configurations.

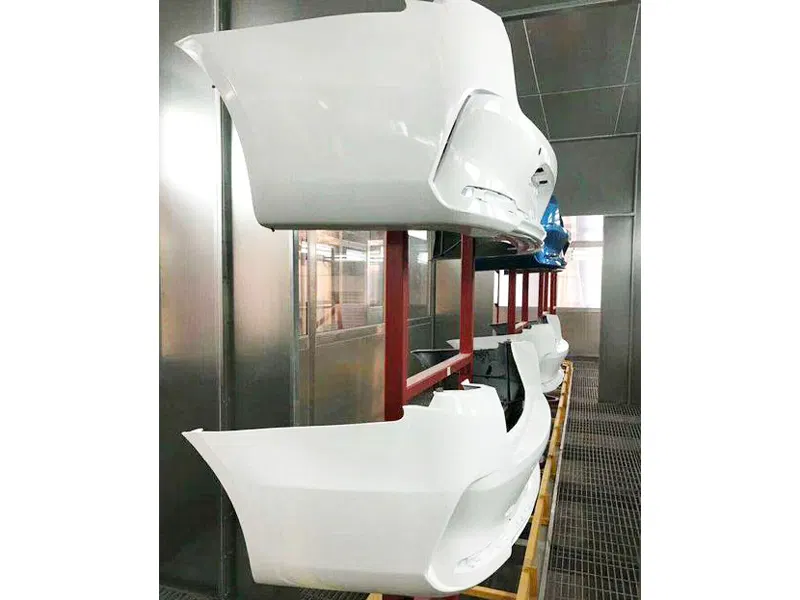

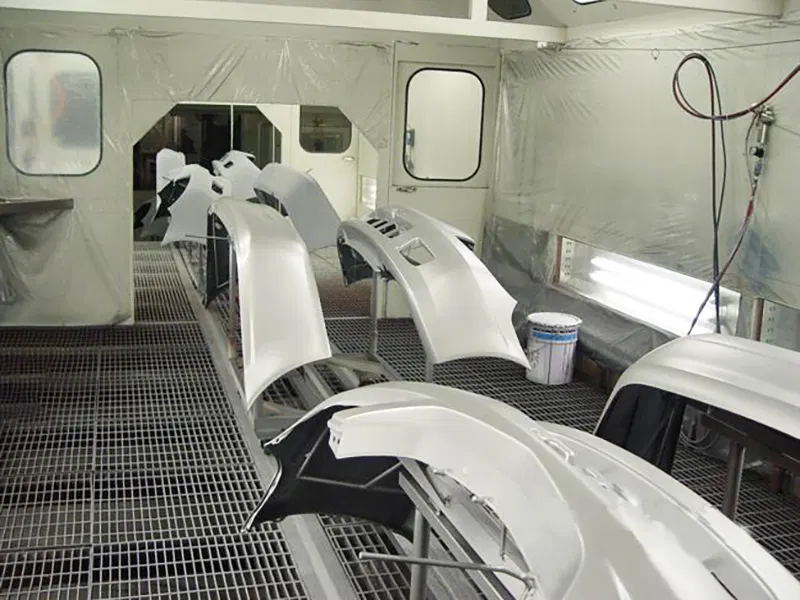

Bumpers

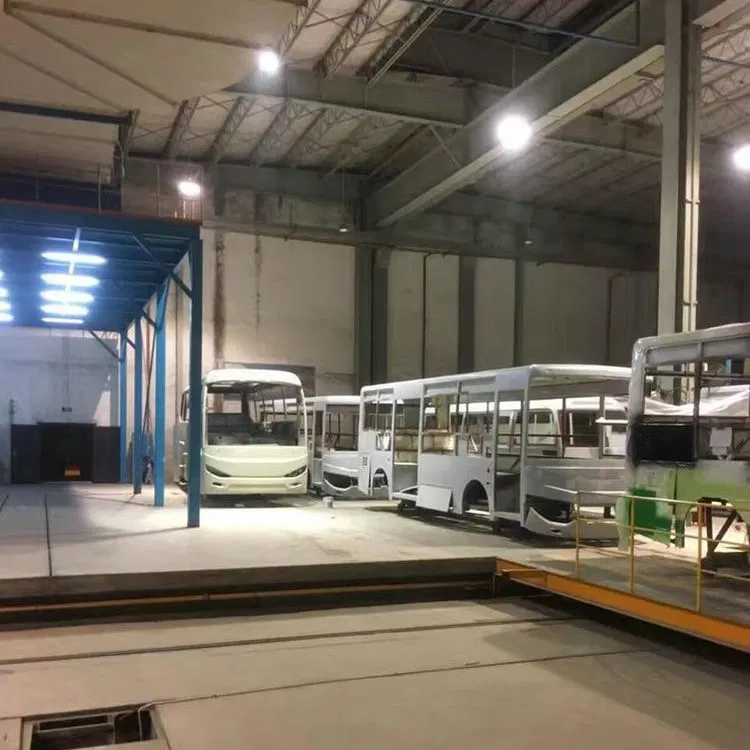

Bus components
Exterior parts
Automotive subassemblies
Product Gallery
More views of this equipment series

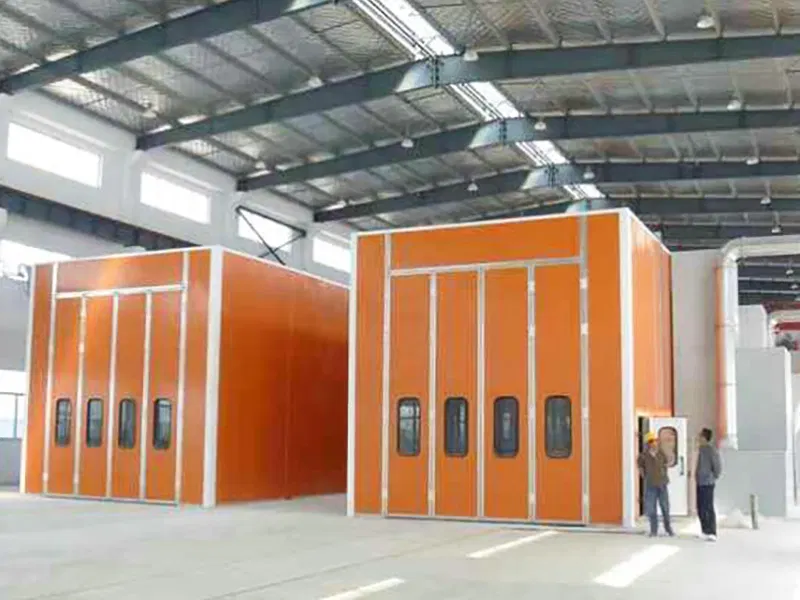

Selected photos from the supplied product image library. These views may represent different projects and configurations.
Related Equipment References
See more documented views before requesting a design

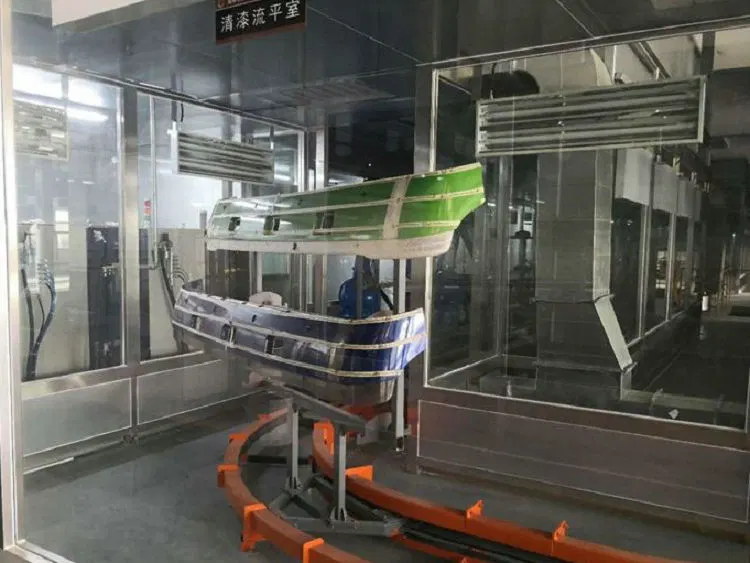

These classified equipment photographs come from the supplied image library. Customer identity, installation date and process settings are not yet verified as case-study data.
Technical Evaluation
Request Engineering ScopeBring your requirements to our engineering team
Request a project-specific layout and engineering scope for internal evaluation.
Planning automotive parts coating lines?
Send us your workpiece or process details, production target and factory layout for an application-specific proposal.
