Custom Industrial Coating Lines
A non-standard coating production line is designed around the workpiece, throughput, finish specification and available factory space.
Explore this option →JI HENG TECHNOLOGY
Industrial Coating Lines
Custom-engineered coating systems for industrial components, machinery and metal products.
Custom DesignAutomated / ManualProject-Specific EnergyTurnkey Project
Request a Custom Solution
From Our Product Catalog
Documented equipment and process scope
The company catalog groups powder application, spray painting rooms, curing ovens, mechanized conveying, lifting equipment and automation control within its painting equipment series. These systems can be planned as a coordinated coating line according to the workpiece and process route.
Equipment shown or described
- ✓Powder application equipment
- ✓Spray painting equipment and custom booths
- ✓Electric ovens and curing ovens

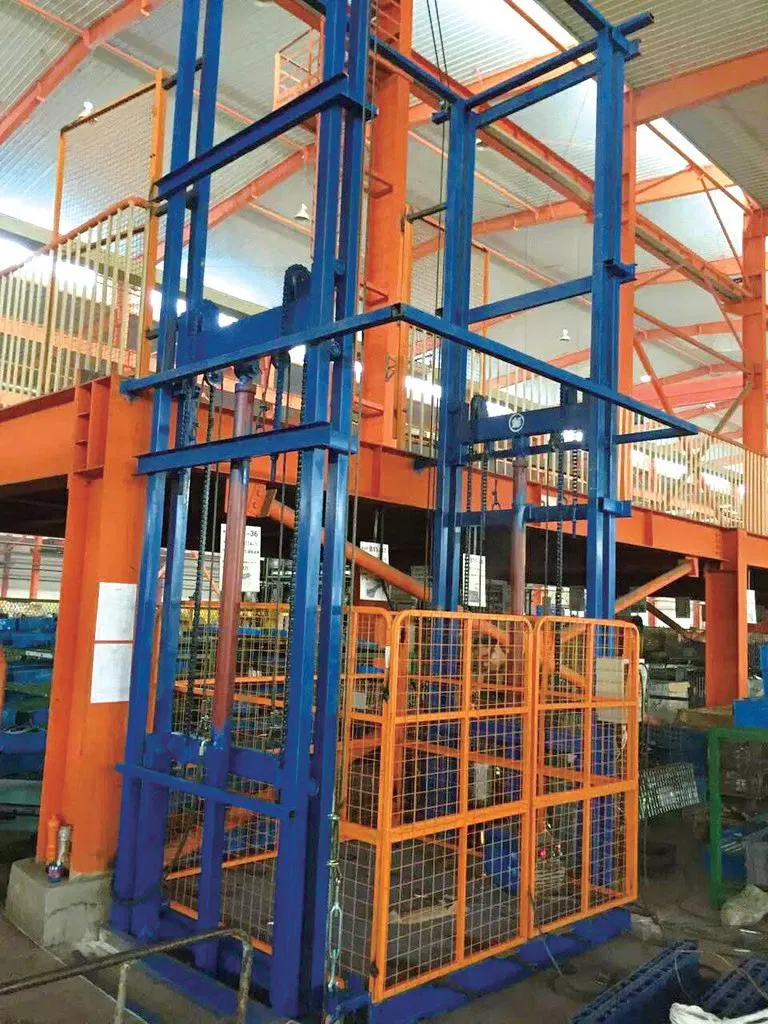

- ✓Mechanized conveying and lifting equipment
- ✓Automation control systems
Source: JI HENG TECHNOLOGY product catalog, PDF pages 4–12.
View English product overview (PDF) →Production Line Options
Choose a coating process, then engineer the complete line
JI HENG TECHNOLOGY develops custom industrial coating lines and complete coating production systems. The route can combine powder application, liquid spray painting, curing, conveying and automation as required by the project.
Powder Coating Production Lines
Metal powder coating lines combine electrostatic application, powder recovery, curing and conveying according to the approved process.
Explore this option →Spray Coating Production Lines
Liquid painting lines integrate spray rooms, handling, drying and exhaust treatment for the specified coating system.

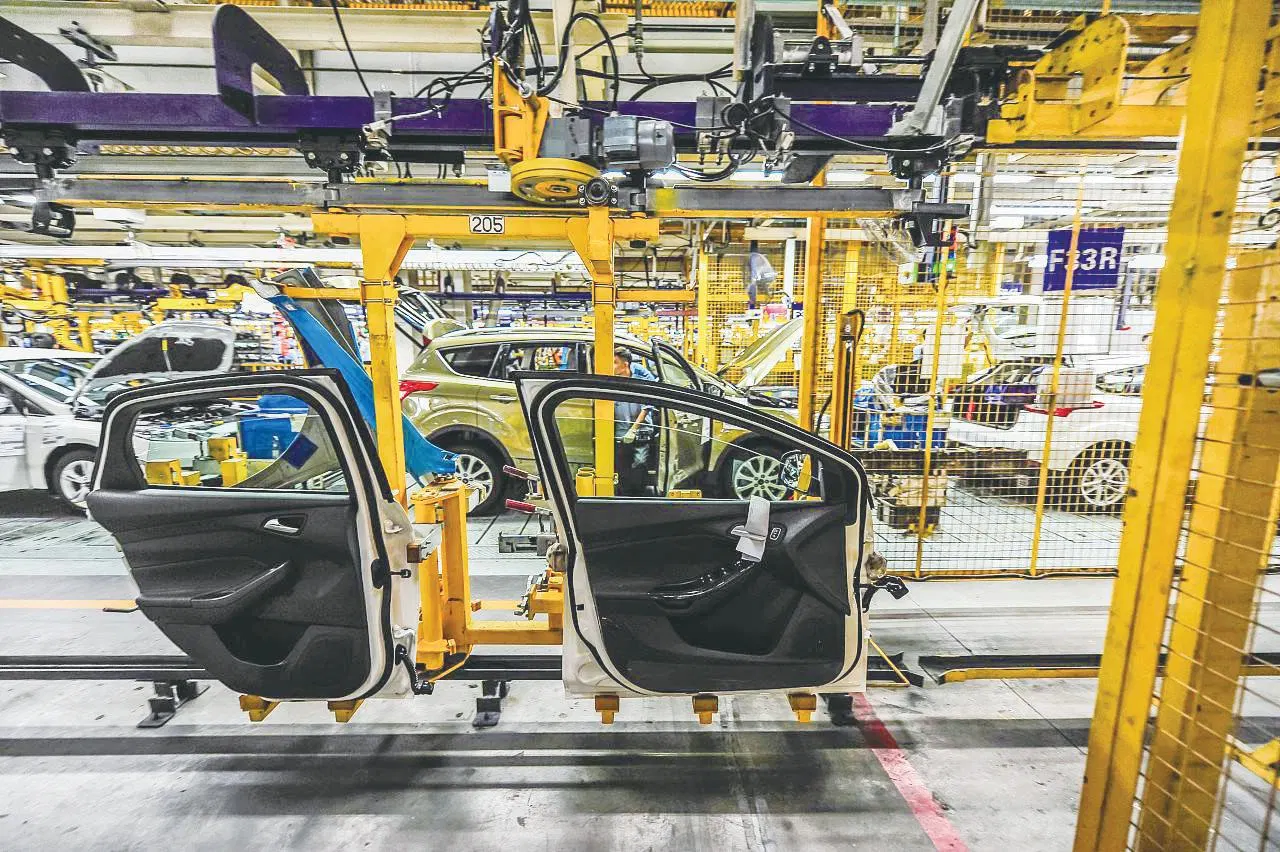

Explore this option →Automotive Parts Coating Lines
Bumpers, bus components and other parts require fixtures, application methods and line flow suited to their geometry.
Explore this option →Explore automotive applications and metal furniture coating. Dedicated project specifications require factory confirmation.
Core Subsystems
Inside the complete system
These are the engineering modules to review for this type of system. Final configuration follows the approved project scope.

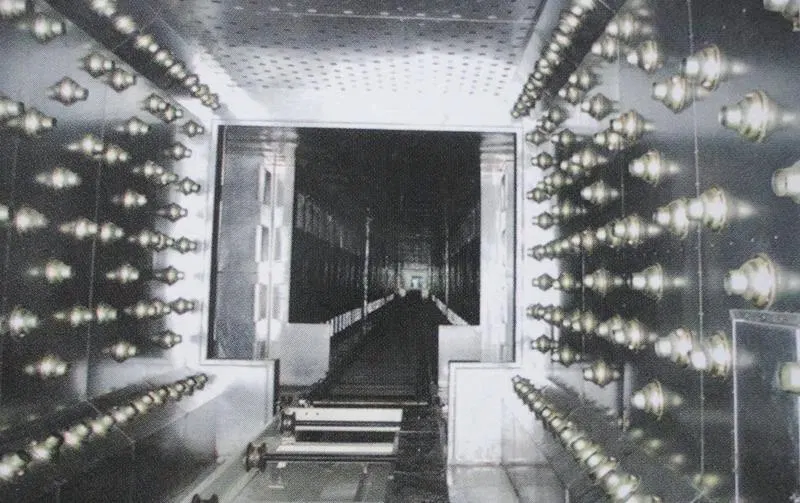

Pretreatment System
Degreasing, cleaning and surface preparation stages configured for the workpiece and coating specification.

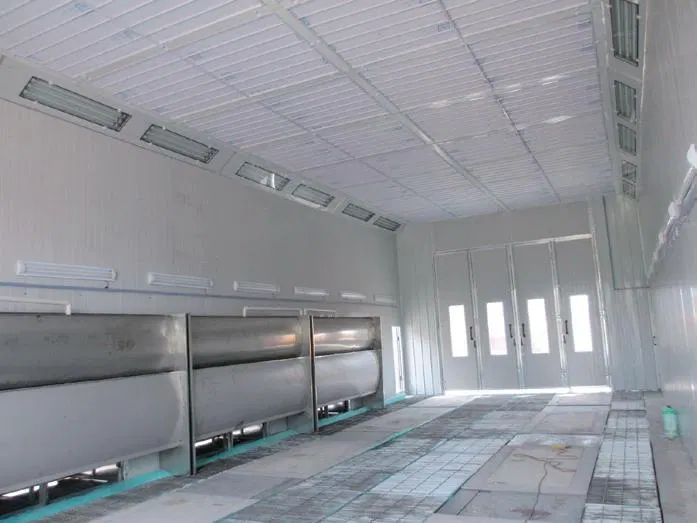

Coating & Spray Booth
Powder or liquid application areas with project-specific airflow, filtration and operating mode.

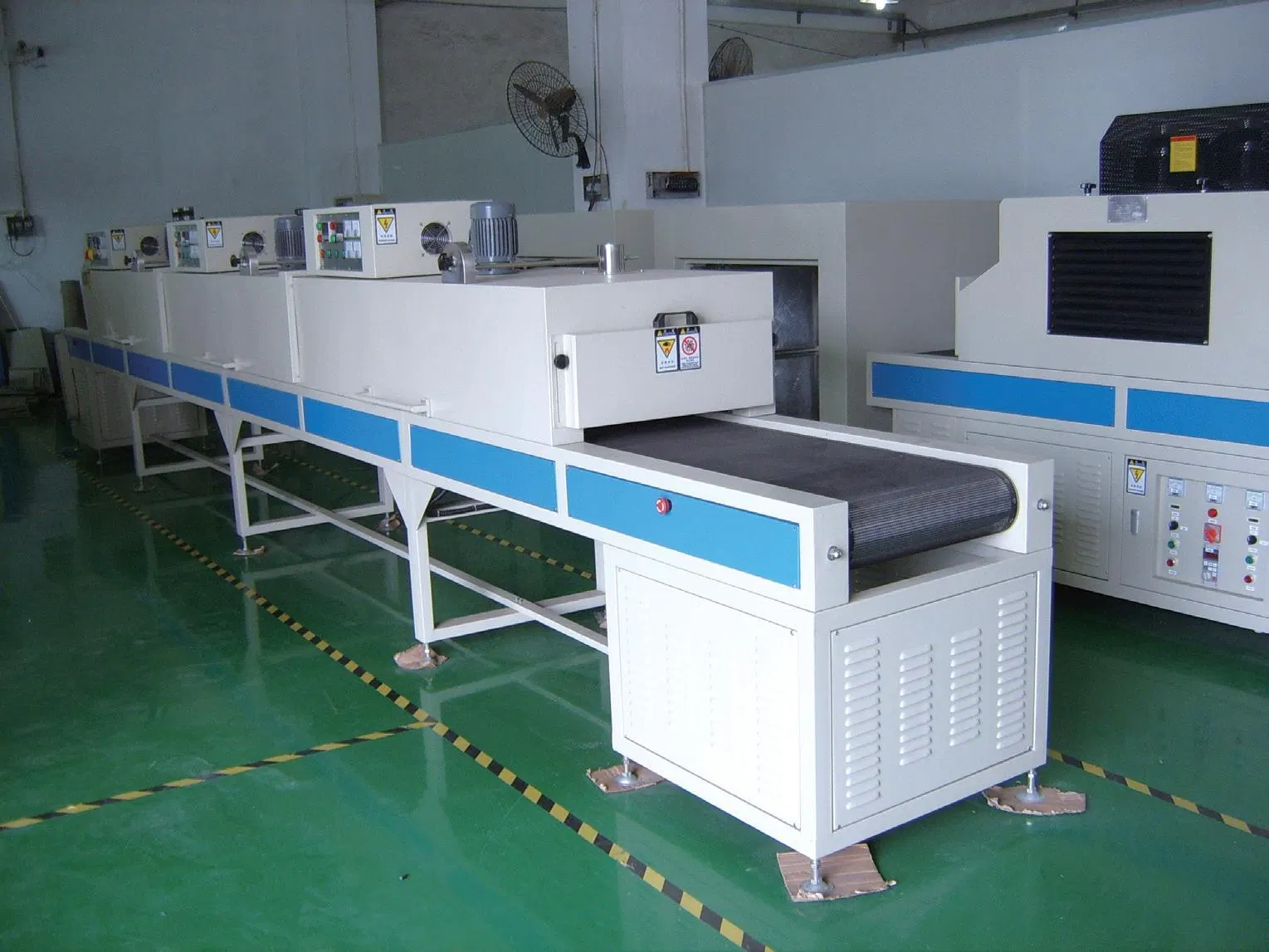

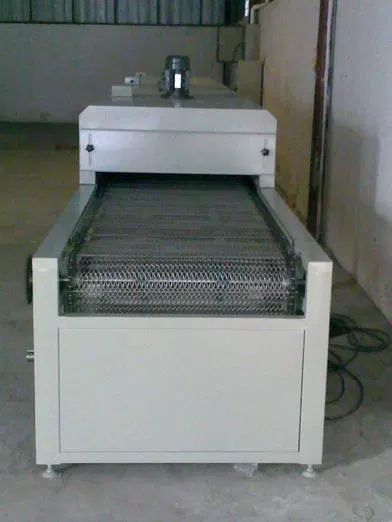

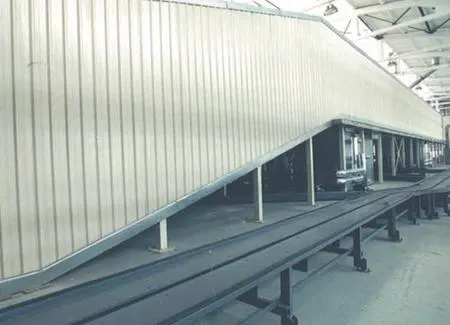

Curing & Drying Oven
Insulated oven construction, heat circulation and entrance design matched to the approved process.

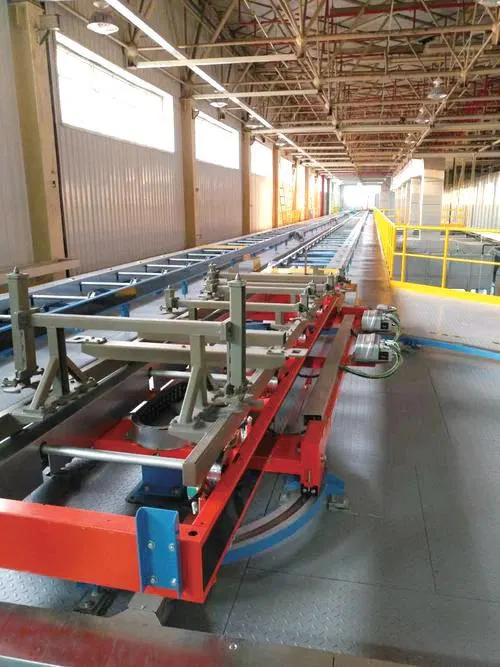

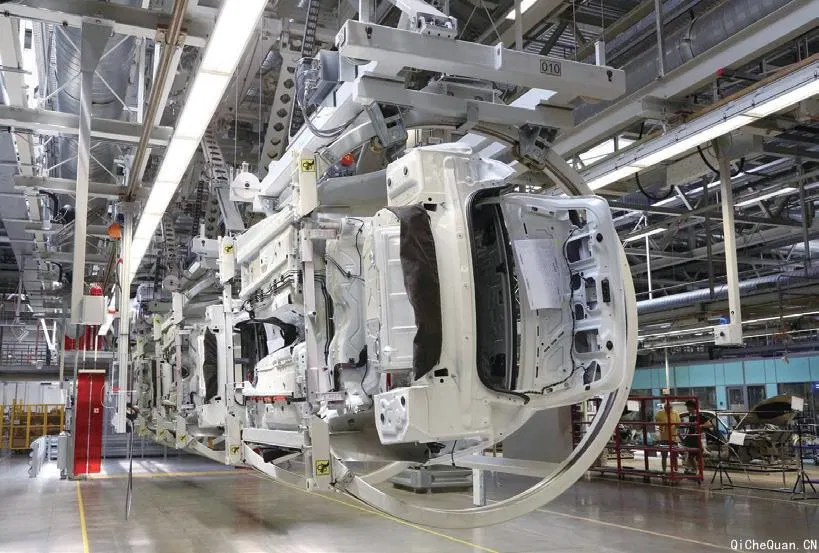

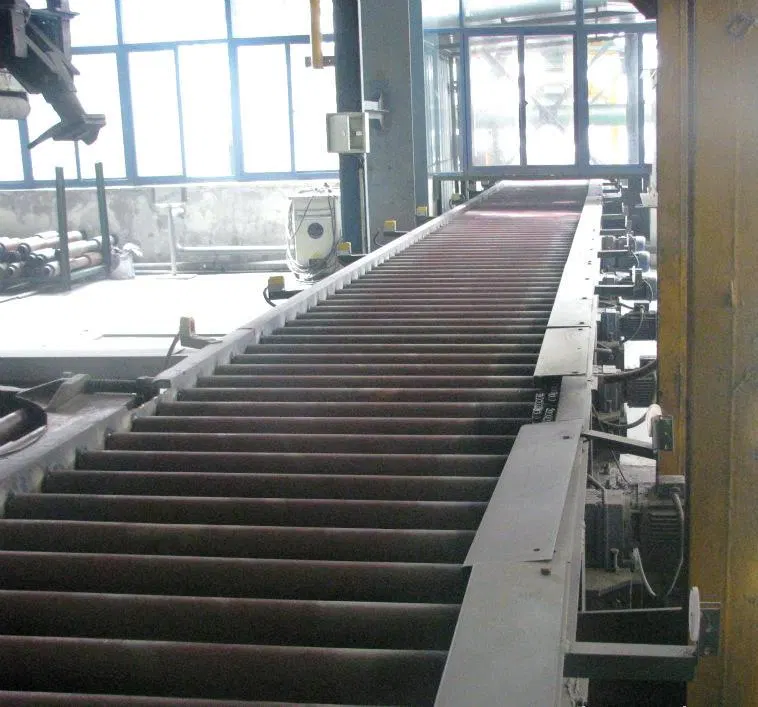

Conveyor & Handling
Overhead, floor or custom handling selected around part weight, takt time and loading method.

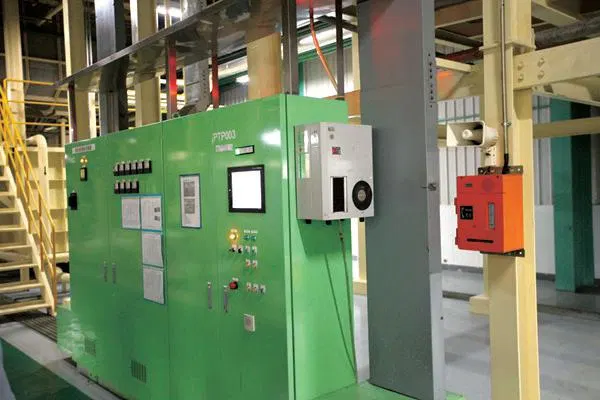

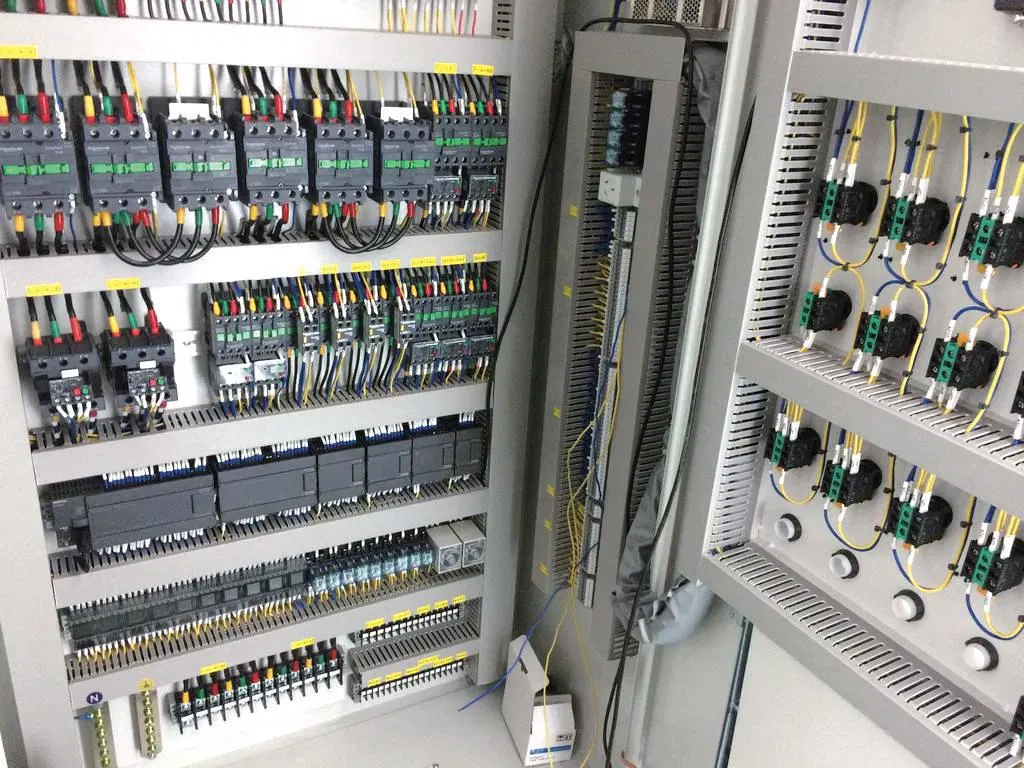

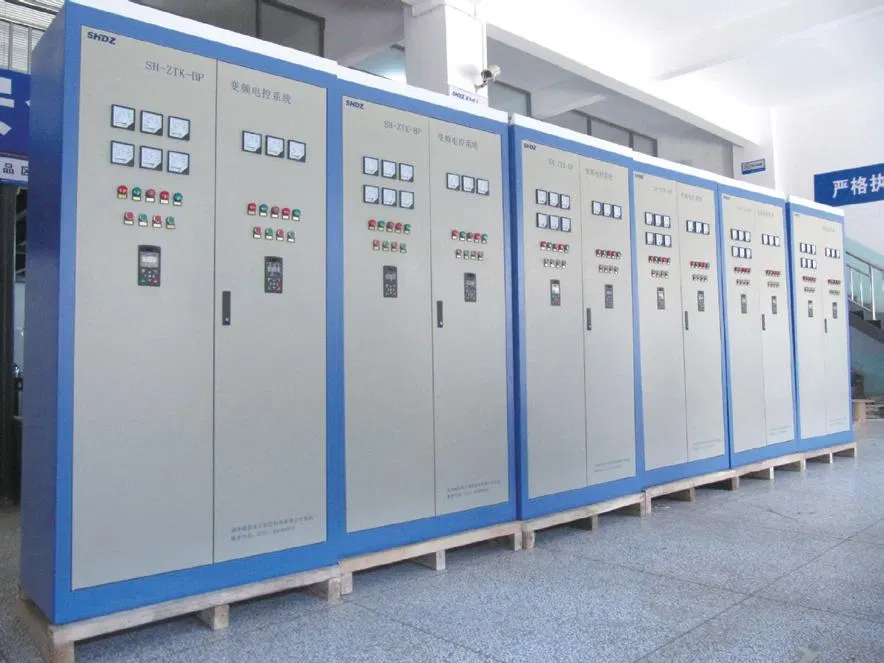

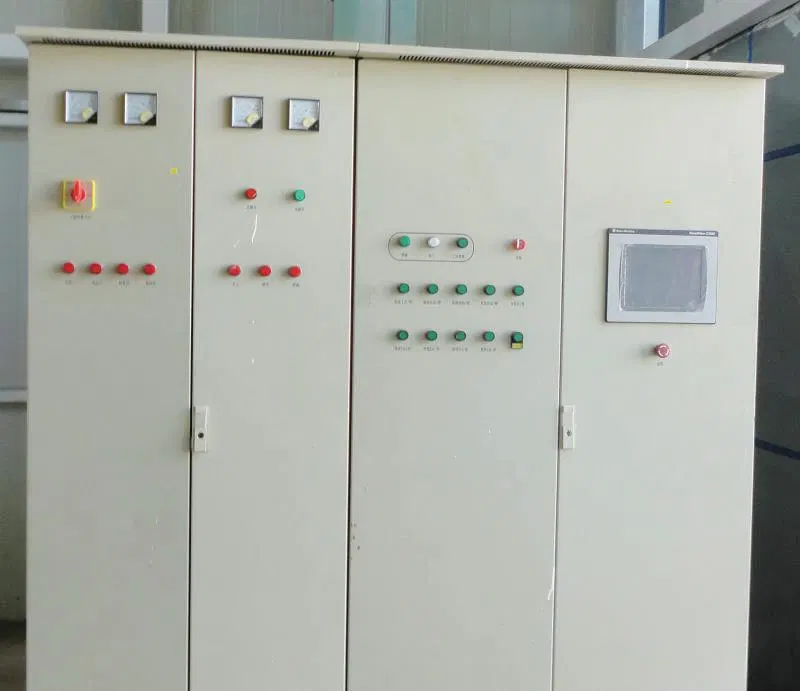

PLC & Automation Control
Centralized process control, interlocks, alarms and operator interface based on the technical agreement.
VOC Exhaust & Dust Collection
Exhaust collection and environmental treatment planned around the coating material and local requirements.
Project-Specific Parameters
Configured by technical agreement
These are design inputs, not a fixed model specification. No standard dimensions, capacities or performance figures are asserted without a confirmed project drawing and calculation.
| Maximum workpiece size | Designed to the approved workpiece envelope and handling method |
|---|---|
| Production capacity | Calculated from takt time, shifts, loading and process dwell time |
| Coating and curing process | Selected for the substrate, coating material and finish specification |
| Conveying method | Overhead, floor, accumulation, indexed or custom handling |
| Energy and controls | Agreed for available site utilities and the required control platform |
| Environmental system | Selected from coating material, exhaust condition and local requirements |
The customer and engineering team confirm the destination country, installation site, applicable laws and standards, technical parameters and acceptance criteria in the signed project documents. Custom design does not by itself establish certification or legal compliance.
Applicable Workpieces
Designed around the product
Discuss the workpiece, substrate and finish with our team. These application areas are planning examples; the gallery photos may show other configurations.
Engineering machinery
Agricultural machinery
Metal products
Custom workpieces

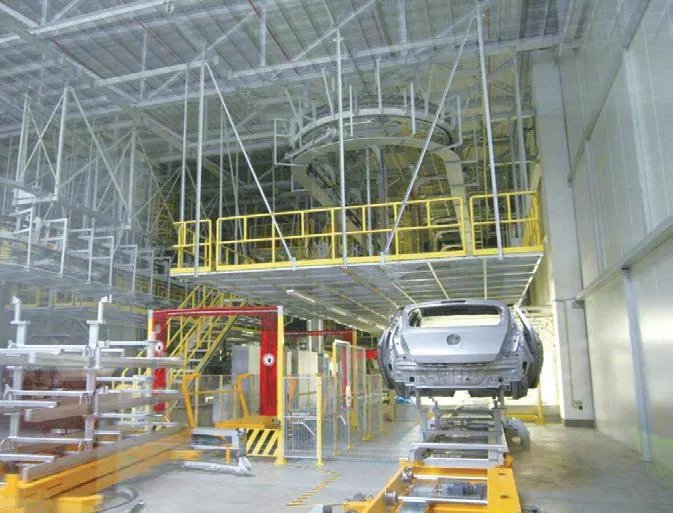

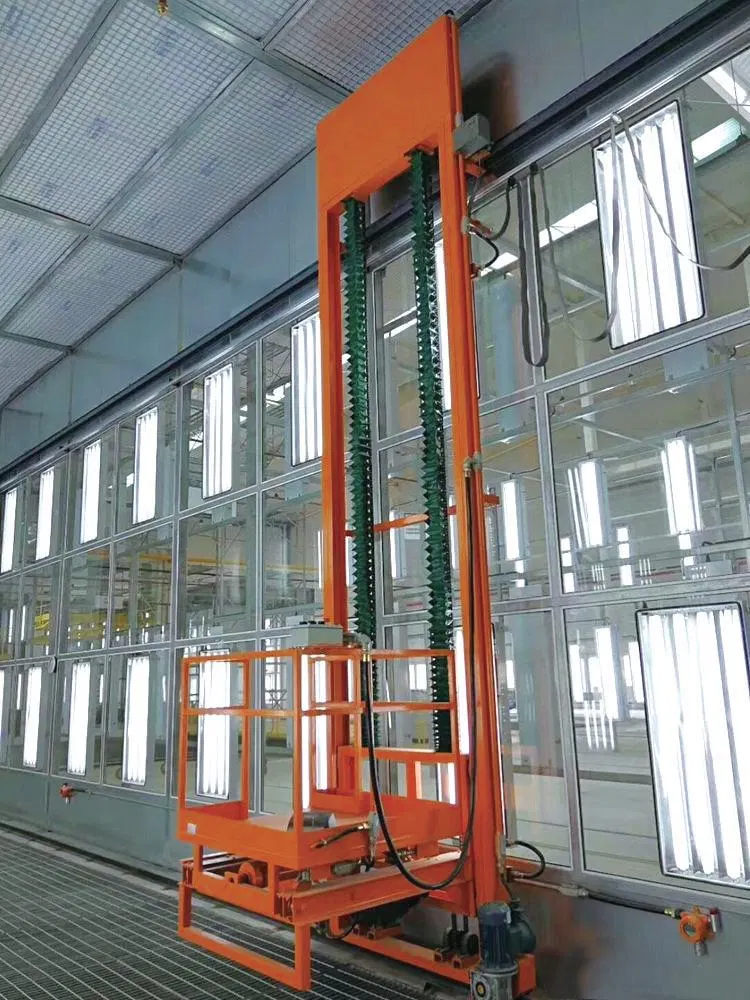

Product Gallery
More views of this equipment series
Selected photos from the supplied product image library. These views may represent different projects and configurations.
Related Equipment References
See more documented views before requesting a design
These classified equipment photographs come from the supplied image library. Customer identity, installation date and process settings are not yet verified as case-study data.
Technical Evaluation
Request Engineering ScopeBring your requirements to our engineering team
Request a project-specific layout and engineering scope for internal evaluation.
Planning industrial coating lines?
Send us your workpiece or process details, production target and factory layout for an application-specific proposal.
